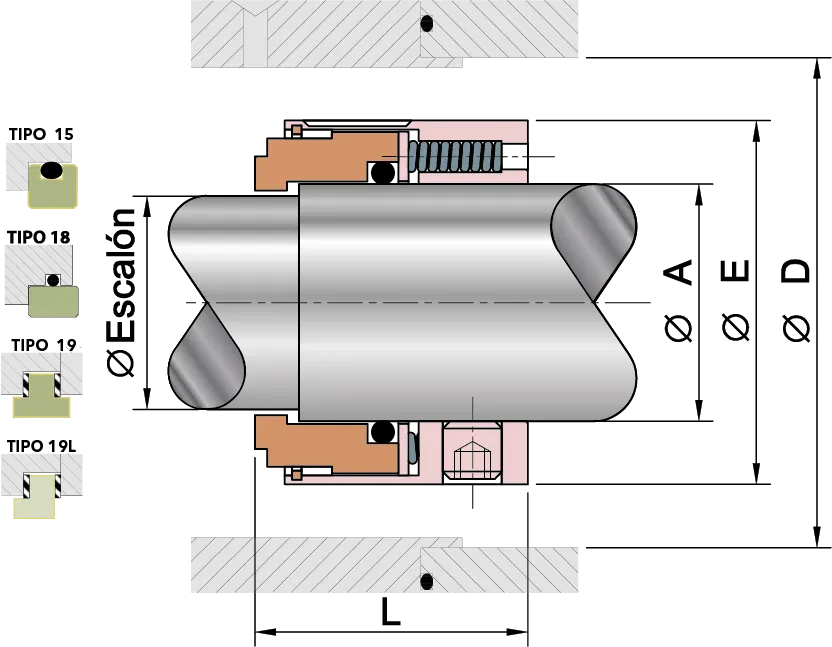

Line "TS8B"
Process Seal
Not sure which material to choose?
Ask our AI assistant or call our sales team.
Materials
0 / 5 selectedSelect one material for each component.
Dimensions
| A | D | E | L | Size | Step |
|---|---|---|---|---|---|
| 1 | 1.625 | 1.437 | 1.312 | 16 | 0.875 |
| 1.125 | 1.750 | 1.562 | 1.375 | 18 | 1 |
| 1.250 | 1.875 | 1.687 | 1.375 | 20 | 1.125 |
| 1.375 | 2.125 | 1.937 | 1.687 | 22 | 1.125 |
| 1.500 | 2.125 | 1.937 | 1.437 | 24 | 1.250 |
| 1.625 | 2.437 | 2.250 | 1.593 | 26 | 1.375 |
| 1.750 | 2.500 | 2.312 | 1.750 | 28 | 1.500 |
| 1.875 | 2.687 | 2.500 | 1.750 | 30 | 1.625 |
| 2 | 2.812 | 2.625 | 1.750 | 32 | 1.750 |
| 2.125 | 3 | 2.812 | 2.062 | 34 | 1.875 |
| 2.250 | 3.031 | 2.843 | 1.750 | 36 | 2 |
| 2.375 | 3.187 | 3 | 2.062 | 38 | 2.125 |
| 2.500 | 3.312 | 3.125 | 1.750 | 40 | 2.250 |
| 2.625 | 3.437 | 3.250 | 2.062 | 42 | 2.375 |
| 2.750 | 3.562 | 3.375 | 2.062 | 44 | 2.500 |
| 2.875 | 3.687 | 3.500 | 2.062 | 46 | 2.625 |
| 3 | 3.812 | 3.625 | 2.062 | 48 | 2.750 |
| 3.125 | 3.937 | 3.750 | 2.062 | 50 | 2.875 |
| 3.250 | 4.062 | 3.875 | 2.062 | 52 | 3 |
| 3.375 | 4.187 | 4 | 2.062 | 54 | 3.125 |
| 3.500 | 4.312 | 4.125 | 2.062 | 56 | 3.250 |
| 3.625 | 4.437 | 4.250 | 2.062 | 58 | 3.375 |
| 3.750 | 4.562 | 4.375 | 2.062 | 60 | 3.500 |
| 3.875 | 4.687 | 4.500 | 2.062 | 62 | 3.625 |
| 4 | 4.812 | 4.625 | 2.062 | 64 | 3.750 |
Operating limits
Minimum temperature
-57
°C
78%
-73 °C
0 °C
Maximum temperature
316
°C
74%
0 °C
426 °C
Maximum pressure
300
PSI
30%
0 PSI
1,000 PSI
Maximum speed
3,600
RPM
36%
0 RPM
10,000 RPM
