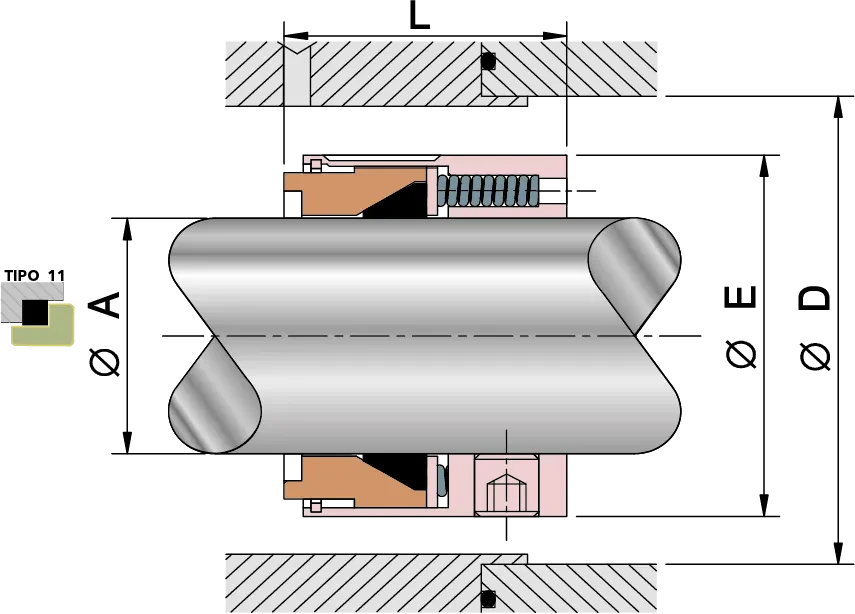

Line "TS9T"
Process Seal
Not sure which material to choose?
Ask our AI assistant or call our sales team.
Materials
0 / 5 selectedSelect one material for each component.
Dimensions
| A | D | E | L | Size |
|---|---|---|---|---|
| 0.500 | 1.062 | 0.937 | 0.937 | 8 |
| 0.625 | 1.187 | 1.062 | 0.937 | 10 |
| 0.750 | 1.312 | 1.187 | 0.937 | 12 |
| 0.875 | 1.437 | 1.312 | 0.937 | 14 |
| 0.937 | 1.562 | 1.437 | 1 | 15 |
| 1 | 1.562 | 1.437 | 1 | 16 |
| 1.125 | 1.687 | 1.562 | 1 | 18 |
| 1.250 | 1.812 | 1.687 | 1 | 20 |
| 1.375 | 2.062 | 1.937 | 1.375 | 22 |
| 1.500 | 2.062 | 1.937 | 1.125 | 24 |
| 1.625 | 2.375 | 2.250 | 1.156 | 26 |
| 1.750 | 2.437 | 2.312 | 1.375 | 28 |
| 1.875 | 2.625 | 2.500 | 1.375 | 30 |
| 2 | 2.750 | 2.625 | 1.375 | 32 |
| 2.125 | 2.937 | 2.812 | 1.687 | 34 |
| 2.250 | 2.968 | 2.843 | 1.375 | 36 |
| 2.375 | 3.125 | 3 | 1.687 | 38 |
| 2.500 | 3.250 | 3.125 | 1.375 | 40 |
| 2.625 | 3.375 | 3.250 | 1.687 | 42 |
| 2.750 | 3.500 | 3.375 | 1.687 | 44 |
| 2.875 | 3.625 | 3.500 | 1.687 | 46 |
| 3 | 3.750 | 3.625 | 1.687 | 48 |
| 3.125 | 3.875 | 3.750 | 1.687 | 50 |
| 3.250 | 4 | 3.875 | 1.687 | 52 |
| 3.375 | 4.125 | 4 | 1.687 | 54 |
| 3.500 | 4.250 | 4.125 | 1.687 | 56 |
| 3.625 | 4.375 | 4.250 | 1.687 | 58 |
| 3.750 | 4.500 | 4.375 | 1.687 | 60 |
| 3.875 | 4.625 | 4.500 | 1.687 | 62 |
| 4 | 4.750 | 4.625 | 1.687 | 64 |
Operating limits
Minimum temperature
-59
°C
81%
-73 °C
0 °C
Maximum temperature
260
°C
61%
0 °C
426 °C
Maximum pressure
350
PSI
35%
0 PSI
1,000 PSI
Maximum speed
3,600
RPM
36%
0 RPM
10,000 RPM
