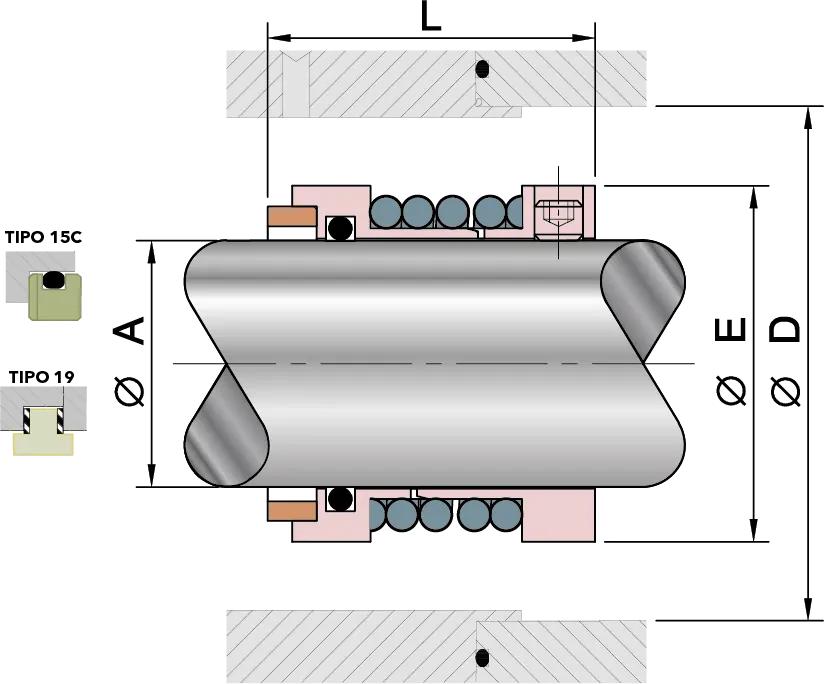

Line "TS15A"
Process Seal
Not sure which material to choose?
Ask our AI assistant or call our sales team.
Materials
0 / 5 selectedSelect one material for each component.
Dimensions
| A | D | E | L | Size |
|---|---|---|---|---|
| 1 | 1.750 | 1.500 | 1.500 | 16 |
| 1.125 | 1.875 | 1.625 | 1.562 | 18 |
| 1.250 | 2 | 1.750 | 1.688 | 20 |
| 1.375 | 2.125 | 1.875 | 1.750 | 22 |
| 1.500 | 2.312 | 2.062 | 1.750 | 24 |
| 1.625 | 2.500 | 2.250 | 1.750 | 26 |
| 1.750 | 2.625 | 2.375 | 1.750 | 28 |
| 1.875 | 2.750 | 2.500 | 1.875 | 30 |
| 2 | 2.937 | 2.687 | 1.938 | 32 |
| 2.125 | 3.125 | 2.875 | 2.063 | 34 |
| 2.250 | 3.250 | 3 | 2.063 | 36 |
| 2.375 | 3.375 | 3.125 | 2.250 | 38 |
| 2.500 | 3.500 | 3.250 | 2.250 | 40 |
| 2.625 | 3.750 | 3.437 | 2.313 | 42 |
| 2.750 | 3.875 | 3.562 | 2.313 | 44 |
| 2.875 | 4 | 3.687 | 2.563 | 46 |
| 3 | 4.188 | 3.875 | 2.750 | 48 |
| 3.125 | 4.437 | 4.062 | 2.750 | 50 |
| 3.250 | 4.562 | 4.187 | 2.750 | 52 |
| 3.375 | 4.687 | 4.312 | 2.750 | 54 |
| 3.500 | 4.812 | 4.437 | 2.750 | 56 |
| 3.625 | 4.937 | 4.562 | 3 | 58 |
| 3.750 | 5.062 | 4.687 | 3.250 | 60 |
| 3.875 | 5.187 | 4.812 | 3.500 | 62 |
| 4 | 5.312 | 4.937 | 3.625 | 64 |
Operating limits
Minimum temperature
-57
°C
78%
-73 °C
0 °C
Maximum temperature
316
°C
74%
0 °C
426 °C
Maximum pressure
150
PSI
15%
0 PSI
1,000 PSI
Maximum speed
3,600
RPM
36%
0 RPM
10,000 RPM
