Line "TS70"
Process Seal
Not sure which material to choose?
Ask our AI assistant or call our sales team.
Materials
0 / 5 selectedSelect one material for each component.
Dimensions

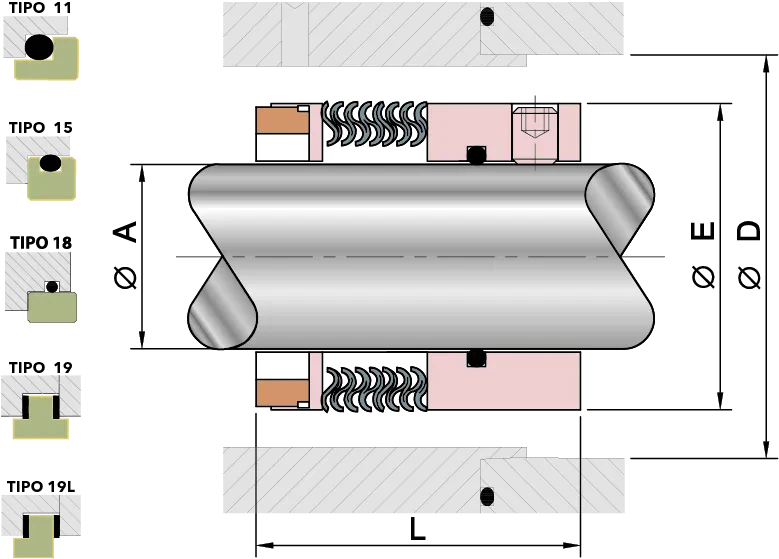

| A | D | E | L | Size |
|---|---|---|---|---|
| 1 | 1.582 | 1.457 | 1.250 | 16 |
| 1.125 | 1.812 | 1.687 | 1.250 | 18 |
| 1.250 | 1.937 | 1.812 | 1.312 | 20 |
| 1.375 | 2.062 | 1.937 | 1.437 | 22 |
| 1.500 | 2.187 | 2.062 | 1.437 | 24 |
| 1.625 | 2.312 | 2.187 | 1.437 | 26 |
| 1.750 | 2.437 | 2.312 | 1.437 | 28 |
| 1.875 | 2.562 | 2.437 | 1.500 | 30 |
| 2 | 2.687 | 2.562 | 1.500 | 32 |
| 2.125 | 2.812 | 2.687 | 1.500 | 34 |
| 2.250 | 2.937 | 2.812 | 1.562 | 36 |
| 2.375 | 3.062 | 2.937 | 1.562 | 38 |
| 2.500 | 3.312 | 3.187 | 1.562 | 40 |
| 2.625 | 3.437 | 3.312 | 1.625 | 42 |
| 2.750 | 3.562 | 3.437 | 1.625 | 44 |
| 2.875 | 3.750 | 3.625 | 1.687 | 46 |
| 3 | 3.875 | 3.750 | 1.687 | 48 |
| 3.125 | 4 | 3.875 | 1.750 | 50 |
| 3.250 | 4.125 | 4 | 1.750 | 52 |
| 3.375 | 4.250 | 4.125 | 1.750 | 54 |
| 3.500 | 4.375 | 4.250 | 1.875 | 56 |
| 3.625 | 4.500 | 4.375 | 1.875 | 58 |
| 3.750 | 4.625 | 4.500 | 1.875 | 60 |
| 3.875 | 4.750 | 4.625 | 1.875 | 62 |
| 4 | 4.875 | 4.750 | 1.875 | 64 |
Operating limits
Minimum temperature
-57
°C
78%
-73 °C
0 °C
Maximum temperature
316
°C
74%
0 °C
426 °C
Maximum pressure
300
PSI
30%
0 PSI
1,000 PSI
Maximum speed
3,600
RPM
36%
0 RPM
10,000 RPM
