TSBU08
Zoom

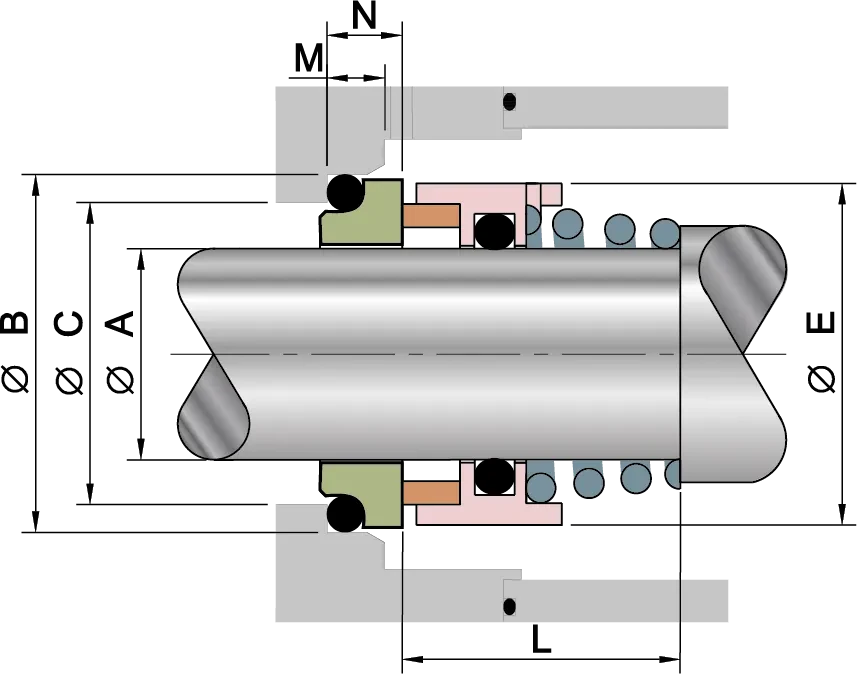

Line "TSBU08"

Semi Process Seal

Not sure which material to choose?

Ask our AI assistant or call our sales team.

Ask the AI assistant Call sales

Materials

0 / 5 selected

Select one material for each component.

Download data sheet

Dimensions

A B C E L M N
14 24.600 20.500 24 16.500 5 5.600
16 28 22 26 16.500 6.500 7.500
18 30 24 31 18 6.500 8
20 35 29.500 34 19 6.500 7.500
22 35 29.500 36 20.500 6.500 7.500
24 38 32 38 22 6.500 7.500
25 38 32 39 23.500 6.500 7.500
26 40 34 40 23.500 6.500 8
28 42 36 42 24.500 6.500 9
30 45 39.200 44 24.500 6.500 10.500
32 48 42.200 46 28 6.500 10.500
35 52 46.200 49 28 6.500 11
38 55 49.200 54 31 6.500 10.300
40 58 52.200 56 34 6.500 10.800
42 62 53.300 58 35 8 12
45 64 55.300 61 36.500 8 11.600
48 68.400 59.700 64 42 8 11.600
50 69.300 60.800 66 43 8 11.600
55 75.400 66.500 71 47 8 13.300
58 78.400 69.500 78 50 8 13.300
60 80.400 71.500 79 51 8 13.300
65 85.400 76.500 85 52 8 13
68 91.500 82.700 88 52.700 8 13.700
70 92 83 90 54 8 13
75 99 90.200 98 54 8 14
80 104 95.200 103 58 8 15

Operating limits

Minimum temperature

-57 °C
78%
-73 °C 0 °C

Maximum temperature

204 °C
48%
0 °C 426 °C

Maximum pressure

145 PSI
14%
0 PSI 1,000 PSI

Maximum speed

3,600 RPM
36%
0 RPM 10,000 RPM
