TS02
Zoom

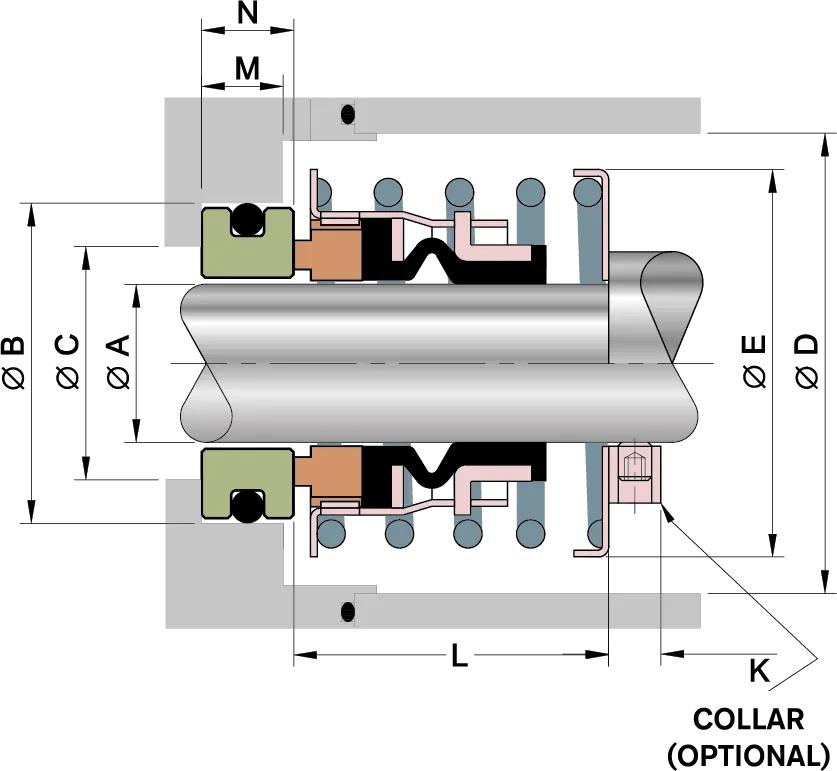

Line "TS02"

Semi Process Seal

Not sure which material to choose?

Ask our AI assistant or call our sales team.

Ask the AI assistant Call sales

Materials

0 / 5 selected

Select one material for each component.

Download data sheet

Dimensions

A B C D E L M N Size
1.250 0.937 1.562 1.375 0.875 0.312 0.344 0.406 5/8
1.375 1.062 1.687 1.500 0.875 0.375 0.344 0.406 3/4
1.500 1.187 1.812 1.625 0.937 0.375 0.344 0.406 7/8
1.625 1.312 2 1.812 1 0.375 0.375 0.438 1
1.750 1.437 2.125 1.937 1.062 0.375 0.375 0.438 1-1/8
1.875 1.562 2.250 2.062 1.062 0.375 0.375 0.438 1-1/4
2 1.687 2.437 2.250 1.125 0.375 0.375 0.438 1-3/8
2.125 1.812 2.562 2.375 1.125 0.375 0.375 0.438 1-1/2
2.375 2 2.937 2.718 1.375 0.375 0.438 0.500 1-5/8
2.500 2.125 3.062 2.750 1.375 0.375 0.438 0.500 1-3/4
2.625 2.250 3.187 2.875 1.500 0.375 0.438 0.500 1-7/8
2.750 2.375 3.312 3 1.500 0.375 0.438 0.500 2
3 2.500 3.625 3.250 1.687 0.500 0.500 0.562 2-1/8
3.125 2.625 3.750 3.375 1.687 0.500 0.500 0.562 2-1/4
3.250 2.750 3.875 3.500 1.812 0.500 0.500 0.562 2-3/8
3.375 2.875 4 3.625 1.812 0.500 0.500 0.562 2-1/2
3.375 3 4.312 3.875 1.937 0.500 0.562 0.625 2-5/8
3.500 3.125 4.437 4 1.937 0.500 0.562 0.625 2-3/4
3.750 3.250 4.562 4.125 2.062 0.500 0.562 0.625 2-7/8
3.875 3.375 4.687 4.250 2.062 0.500 0.562 0.625 3

Operating limits

Minimum temperature

-57 °C
78%
-73 °C 0 °C

Maximum temperature

204 °C
48%
0 °C 426 °C

Maximum pressure

250 PSI
25%
0 PSI 1,000 PSI

Maximum speed

3,600 RPM
36%
0 RPM 10,000 RPM
