Line "TS80"
Cartridge
Not sure which material to choose?
Ask our AI assistant or call our sales team.
Materials
0 / 5 selectedSelect one material for each component.

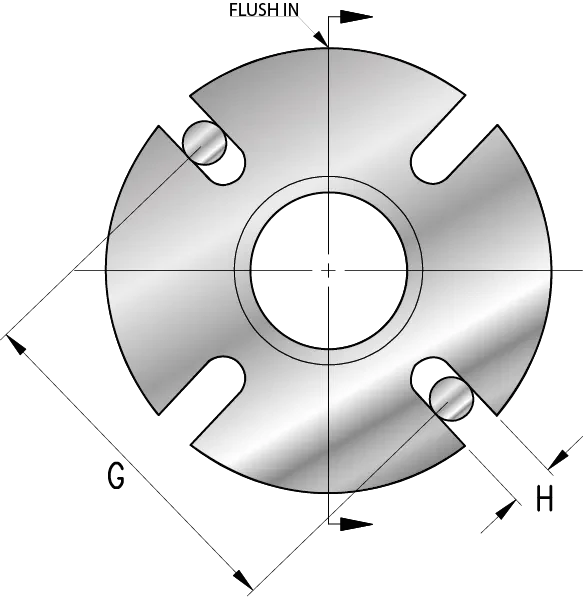

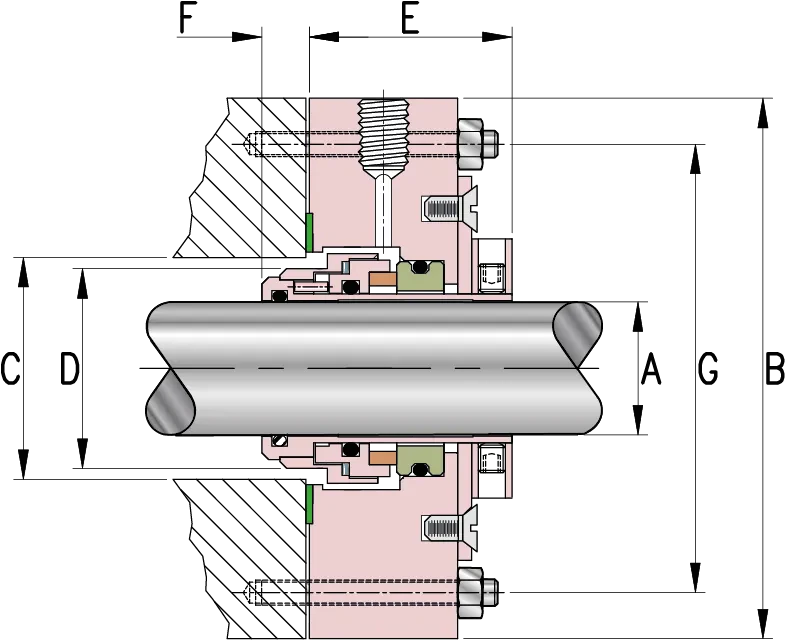

Dimensions
| A | B | C | D | E | F | H | Size | G_max | G_min |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4 | 1.625 | 1.531 | 1.812 | 0.437 | 0.437 | 16 | 3.625 | 2.875 |
| 1.125 | 4.250 | 1.750 | 1.656 | 1.812 | 0.437 | 0.437 | 18 | 3.875 | 3 |
| 1.250 | 4.250 | 1.875 | 1.781 | 1.812 | 0.437 | 0.437 | 20 | 3.875 | 3.125 |
| 1.375 | 4.375 | 2 | 1.907 | 1.875 | 0.437 | 0.437 | 22 | 4 | 3.250 |
| 1.500 | 4.500 | 2.125 | 2.031 | 1.875 | 0.437 | 0.437 | 24 | 4.125 | 3.375 |
| 1.625 | 5.250 | 2.375 | 2.250 | 2 | 0.500 | 0.562 | 26 | 4.750 | 3.750 |
| 1.750 | 5.500 | 2.500 | 2.375 | 2 | 0.500 | 0.562 | 28 | 5 | 3.875 |
| 1.875 | 5.500 | 2.625 | 2.500 | 2 | 0.500 | 0.562 | 30 | 5 | 4 |
| 2 | 6 | 2.750 | 2.625 | 2 | 0.500 | 0.562 | 32 | 5 | 4.250 |
Operating limits
Minimum temperature
-57
°C
78%
-73 °C
0 °C
Maximum temperature
204
°C
48%
0 °C
426 °C
Maximum pressure
125
PSI
13%
0 PSI
1,000 PSI
Maximum speed
3,600
RPM
36%
0 RPM
10,000 RPM
