Line "TS85"

Cartridge

Not sure which material to choose?

Ask our AI assistant or call our sales team.

Ask the AI assistant Call sales

Materials

0 / 5 selected

Select one material for each component.

Seat *

Rotary Face *

Bellow *

Metal Parts *

Spring *

Shaft diameter

Quantity

Download data sheet

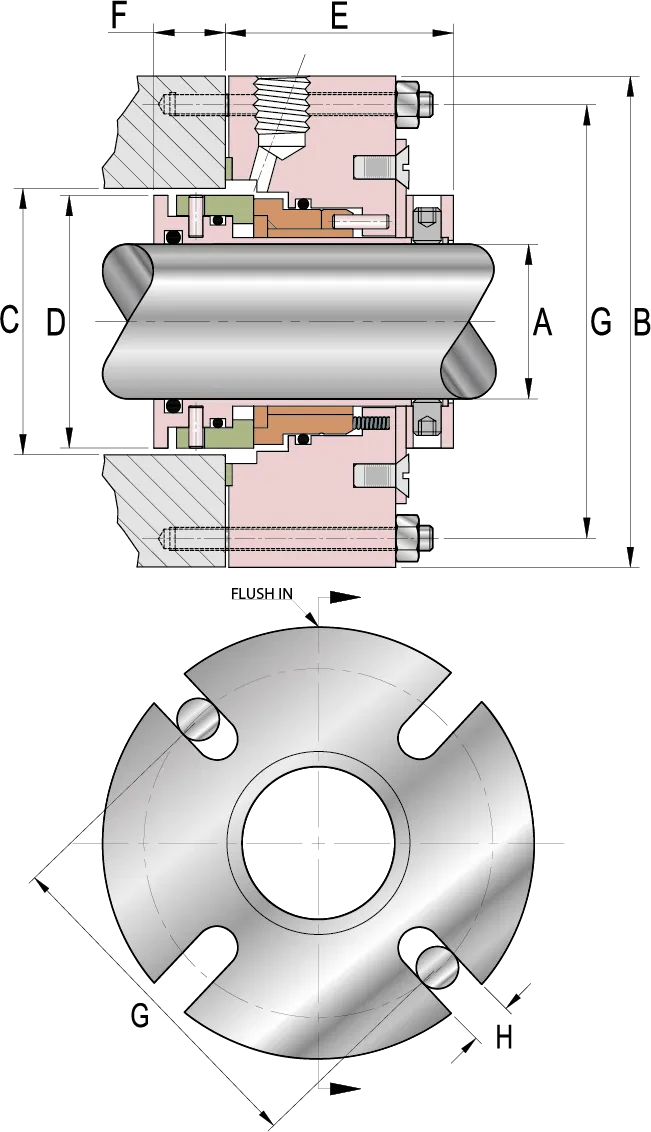

Dimensions

A	B	C	D	E	F	G	H	Size
1.250	4.250	1.695	1.625	2	0.750	3.213	0.562	20
1.375	4.375	1.820	1.750	2	0.750	3.338	0.562	22
1.500	4.875	2.007	1.937	2	0.750	3.599	0.562	24
1.625	5	2.132	2.062	2	0.750	3.766	0.562	26
1.750	5.250	2.240	2.170	2	0.750	3.875	0.562	28
1.875	5.250	2.382	2.312	2	0.750	3.875	0.562	30
2	5.500	2.507	2.437	2	0.875	4	0.562	32
2.125	5.875	2.632	2.562	2	0.875	4.469	0.687	34
2.250	6.500	2.757	2.687	2	0.875	4.566	0.687	36
2.375	6.500	2.882	2.812	2	0.875	4.719	0.687	38
2.500	6.750	3.132	3.062	2	0.875	5	0.687	40

Operating limits

Minimum temperature

-57 °C

78%

-73 °C 0 °C

Maximum temperature

316 °C

74%

0 °C 426 °C

Maximum pressure

450 PSI

45%

0 PSI 1,000 PSI

Maximum speed

3,600 RPM

36%

0 RPM 10,000 RPM
