TS811

Zoom

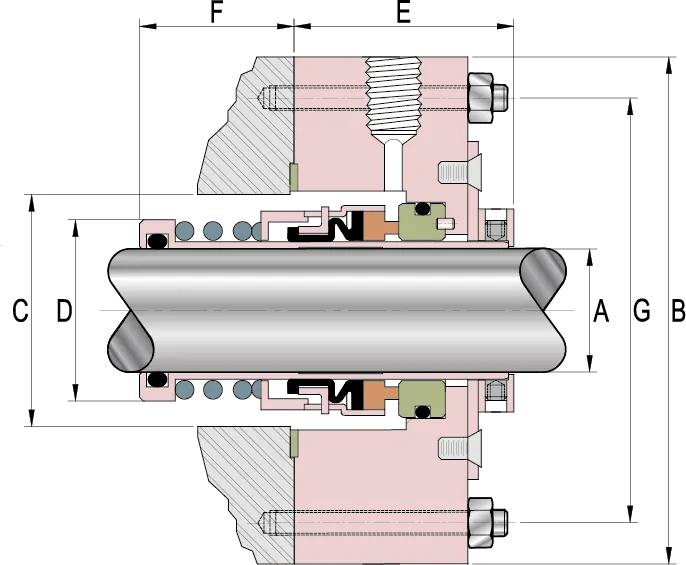

Line "TS81"

Cartridge

Not sure which material to choose?

Ask our AI assistant or call our sales team.

Ask the AI assistant Call sales

Materials

0 / 5 selected

Select one material for each component.

Seat *

Rotary Face *

Bellow *

Metal Parts *

Spring *

Shaft diameter

Quantity

Download data sheet

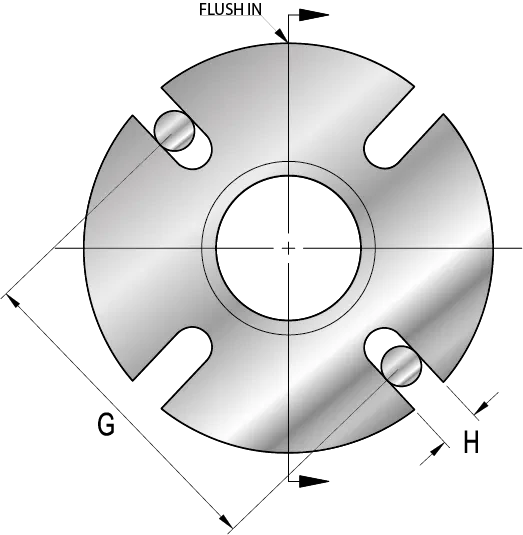

Dimensions

A	B	C	D	E	F	G	H	Size
1.250	4.250	1.812	1.687	2.062	0.687	3.213	0.500	20
1.375	4.375	1.937	1.812	2.062	0.750	3.338	0.500	22
1.500	4.875	2.125	2	2.125	0.875	3.599	0.500	24
1.625	5	2.250	2.125	2.125	1	3.766	0.562	26
1.750	5.250	2.375	2.250	2.125	1	3.875	0.562	28
1.875	5.250	2.500	2.375	2.125	1	3.875	0.562	30
2	5.500	2.750	2.687	2.312	1.125	4	0.562	32
2.125	5.875	2.875	2.812	2.312	1.125	4.469	0.687	34
2.250	6.500	2.875	2.750	2.312	1.250	4.566	0.687	36
2.375	6.500	3.125	3.062	2.466	1.250	4.719	0.687	38
2.500	6.750	3.375	3.250	2.563	1.250	5	0.687	40

Operating limits

Minimum temperature

-57 °C

78%

-73 °C 0 °C

Maximum temperature

204 °C

48%

0 °C 426 °C

Maximum pressure

250 PSI

25%

0 PSI 1,000 PSI

Maximum speed

3,600 RPM

36%

0 RPM 10,000 RPM
