Single Spring Seal

Not sure which material to choose?

Ask our AI assistant or call our sales team.

Ask the AI assistant Call sales

Materials

0 / 5 selected

Select one material for each component.

Download data sheet

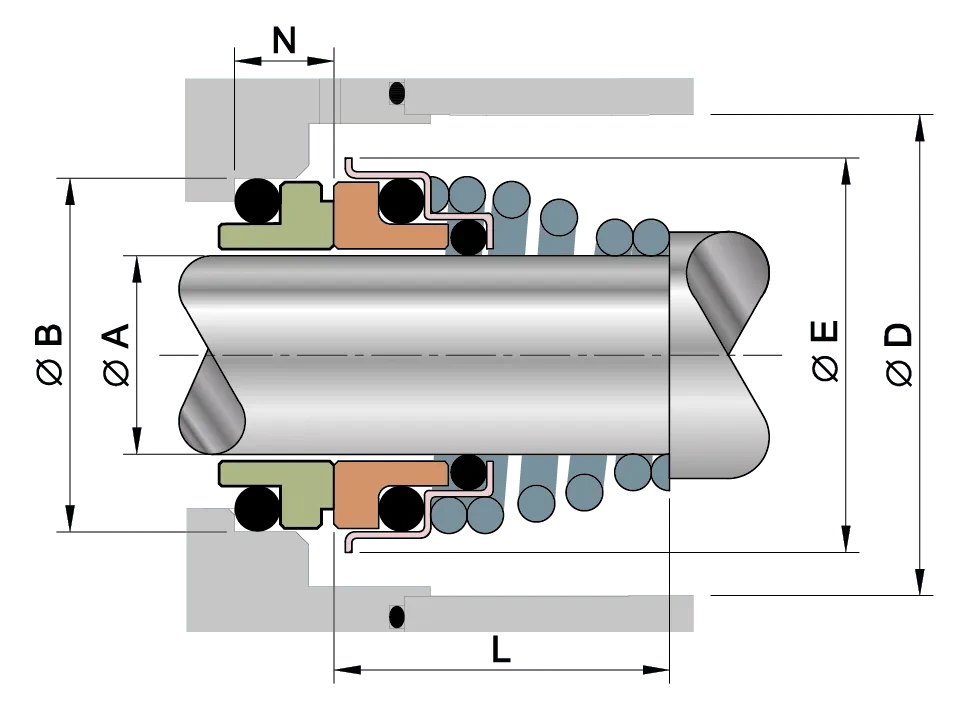

Dimensions

A B D E N Size
18.100 21 20 15 5.500 10
20.600 24 22 18 5.500 11
20.600 24 22 18 5.500 12
23.100 27 25 22 6 13
23.100 27 25 22 6 14
26.900 31 29 23 7 15
26.900 31 29 23 7 16
26.900 31 29 23 7 17
30.900 36 33 24 8 18
30.900 36 33 25 8 19
30.900 36 33 25 8 20
35.400 41 38 25 8 21
35.400 41 38 25 8 22
35.400 41 38 27 8 23
35.400 41 38 27 8 24
38.200 45 40 27 8.500 25
43.300 50 46 30 9 28
43.300 50 46 30 9 29
43.300 50 46 30 9 30
43.300 50 46 30 9 32
53.500 54 48 39 11.500 33
53.500 56 50 39 11.500 35
60.500 62 56 39 11.500 38
60.500 64 58 39 11.500 40

Operating limits

Minimum temperature

-57 °C
78%
-73 °C 0 °C

Maximum temperature

204 °C
48%
0 °C 426 °C

Maximum pressure

115 PSI
12%
0 PSI 1,000 PSI

Maximum speed

3,600 RPM
36%
0 RPM 10,000 RPM
